Description:

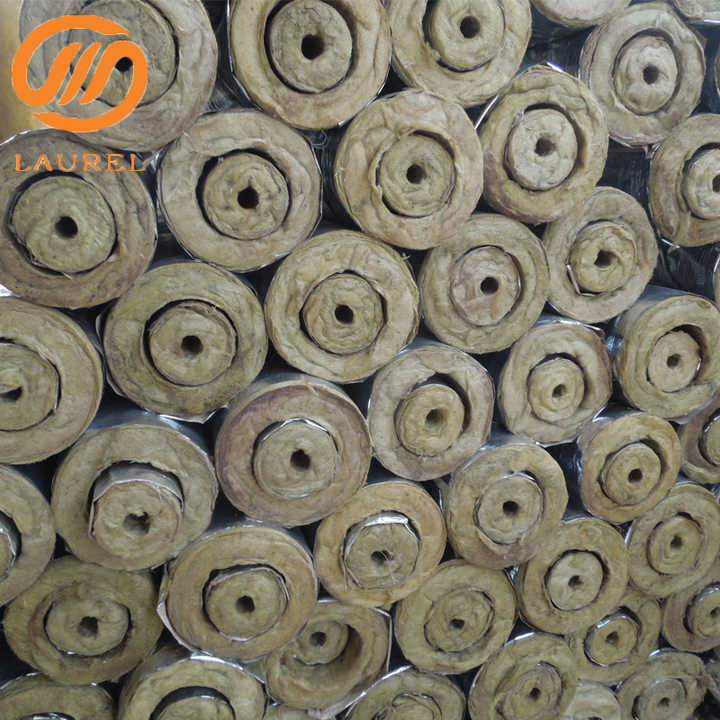

rock wool shell of pipe is made of natural basalt as the major materials which are made into man-made inorganic fibers by fast centrifugal equipment after high-temperature melted, and at the same time adding special adhesives and dust laying oil. It can be made into various rock wool heat-preserving shell of pipe with different specs and requirements by heating and solidify. Also, rock wool can be composite with glass wool and alumina silicate wool into heat-preserving shell of pipe.
Application:
Heat insulation of various hot and cold pipelines, and hidden and exposed pipelines.
Heat insulation of pipelines in electric power, petroleum, chemical industry, light industry, metallurgy and etc.
Distinctive advantages:
Sound absorption and noise reduction; it can effectively prevent syntony.
Light materials; easy for installation.
Antisepsis, ageing resistance and anticorrosion, ensuring a healthy environment.
Low moisture absorption; stable physical properties.
Low thermal conductivity; high heat preservation.
Grade A1 fireproof; incombustible permanently.
Strong resistance to extrusion and impact.
Recommended pipe wall thickness of thermal insulation materials:
inner pipe size mm | working temperature of heat preservation equipment( ) | |||||||
| 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 |
25 | 25 | 40 | 50 | 75 | 85 | 100 | 125 | 140 |
40 | 25 | 40 | 50 | 75 | 85 | 100 | 125 | 140 |
50 | 25 | 40 | 50 | 75 | 85 | 110 | 130 | 140 |
65 | 25 | 40 | 50 | 75 | 85 | 110 | 140 | 150 |
75 | 30 | 40 | 60 | 80 | 90 | 115 | 140 | 150 |
100 | 30 | 40 | 75 | 80 | 100 | 115 | 145 | 160 |
150 | 40 | 50 | 75 | 80 | 115 | 120 | 150 | 175 |
200 | 40 | 50 | 75 | 90 | 115 | 125 | 160 | 180 |
250 | 40 | 50 | 75 | 90 | 120 | 130 | 170 | 190 |
300 | 40 | 50 | 75 | 100 | 125 | 140 | 180 | 200 |
350 | 50 | 50 | 75 | 100 | 125 | 150 | 190 | 210 |
400 | 50 | 60 | 75 | 115 | 125 | 150 | 190 | 210 |
450 | 50 | 60 | 85 | 120 | 140 | 160 | 200 | 220 |
